iMAX B6 Charger Repair | CONNECTION BREAK | How to repair iMAX B6 Charger.

Аватар автора
Сделаем вместе: искусство

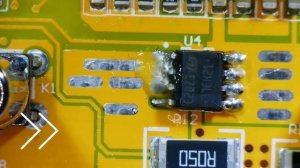

iMAX B6 Charger Repair | CONNECTION BREAK | How to repair iMAX B6 Charger. iMAX B6 LiPo Balance Charger Repair IMAX B6ac LiPro Balance Charger Repair iMAX B6 Mini LiPo Balance Charger Repair iMAX B6 LiPro Balance Charger Repair | LiPo, LiIon, LiFe, NiMH, NiCd, Pb2 Airsoft GUN , RC CAR, Drone 2H3LL (N-channel Mosfet) VDSS : 30V, RDS(ON) : 10mΩ, ID : 12A AO4468 (N-channel Mosfet) VDSS : 30V, RDS(ON) : 14mΩ, ID : 11.6A IRF7413 (N-channel Mosfet) VDSS : 30V, RDS(ON) : 11mΩ, ID : 12A 4920N (N-channel Dual Mosfet) VDSS : 30V, RDS(ON) : 18mΩ, ID : 8.2A CONNECTION BREAK fix 00:00:00:00 00:00:08:27 Hello~~ Today I will repair the IMAX B6 charger. 00:00:11:00 00:00:19:27 If you try to charge the battery without the battery installed, a message is displayed with a warning sound. 00:00:20:26 00:00:29:23 For this reason, check the battery connection cable. 00:00:46:04 00:01:10:04 If the cable is normal but "CONNECTION BREAK" is still output, there is a problem inside the charger. 00:01:24:25 00:01:29:18 Unscrew the 8 screws on both sides. 00:02:00:14 00:02:04:17 Remove the 4 buttons of the operating switch. 00:02:47:16 00:02:55:27 Remove the 3 screws securing the PCB. 00:03:15:22 00:03:24:19 Check the bottom of the case, which acts as a heatsink. 00:03:31:16 00:03:40:13 This is because if the bottom and the MOSFET are in direct contact, they can receive damage from the outside. 00:03:42:04 00:03:51:01 I checked the Schottky Diode and MOSFET and they...
