VOLVO RADIO REMOVAL, FOR V70, XC70, S60, S80 2000 to 2005. Easy 10mn job

Аватар автора
Volvo Speedsters

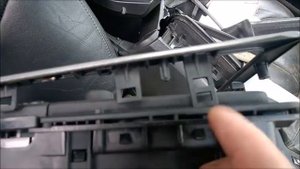

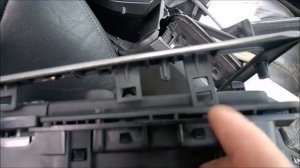

If you&looking to remove the HU radio from your Volvo V70, S80, S60 or XC70, it&an easy and fast process. Follow these simple steps to get the job done: Tools you&need : Torx T25 screwdriver or socket and a trim removal tool. Remove the pencil holder who hide the 2 screws from the aircon unit, use a trim removal tool Remove the climate control unit. Use the trim removal tool to gently pry off the climate control unit. Insert the trim removal tool under the trim and gently pry it off. Work your way around the trim until it comes off completely. Be careful not to damage the surrounding plastic. Remove the 2 torx screws T25 then you can pull up the aircon unit gently Pull the radio out: You&get access to 2 another T25 Torx screws who hold the HU radio itself, remove it. Gently pull the radio out of the dashboard. Be careful not to damage any of the wires or connectors. Disconnect the connectors: There are some connectors that need to be disconnected, depending on you configuration. Gently press the clips and pull the connectors out. Remove the HU radio: Once the connectors are disconnected, you can remove the HU radio from the dashboard. That&it! You&successfully removed the HU radio from your Volvo V70, S80, S60 or XC70. Remember to reconnect the negative battery cable when you&finished. If you¬ comfortable with this process, it&always best to seek the help of a professional. TRIM REMOVAL TOOLS POUCH: - Trim removal tools with pouch, complete first price - Trim...
