How To Reload The Line On An AutoCut C 6-2 Mowing Head | STIHL GB

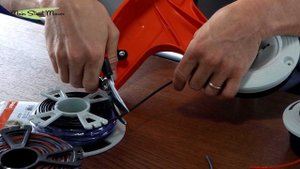

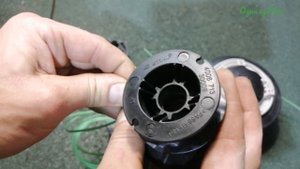

Reloading the line in an AutoCut C 6-2 head is quick and easy to do and in this video, we will show you exactly how this can be done. Step by step guide: ? Ensure the battery has been removed or the power source has been disconnected so there’s no risk of the machine starting whilst you are working on it ? Check to see if the last pieces of the line have ejected themselves from the mowing head by themselves, but if they haven’t, you will need to remove the old pieces before you can load it with a new line. ? To remove the old line, make sure the arrows on the bottom of the mowing head are lined up with the two arrows on the black plastic outer ring. If they aren’t, simply push down the ring and rotate it around. Once they are aligned, you should just be able to pull out the old line. ? If the above method doesn’t work then you will need to remove the head from the machine by gripping the body of the mowing head and undoing the centre nut. This can be done by hand or using a screwdriver. ? Once the old line has been removed, you will need to reassemble the head ready to load with the new line. To do this, put the top of the line head back in, press down and screw the centre nut back on tightly. Check that the white ring can be moved freely and then realign the inner and outer arrows. ? The AutoCut C 6-2 head takes 4 metres of our green 2mm mowing line. Take one end of the line, push it into the eyelet and keep pushing through until it comes out the other side of...
