{170} How to test MBR20100CT, MB20 Series, Schottky Power Rectifier

Аватар автора
Домашние инновации: техника и устройства

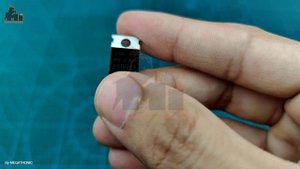

How to test MBR20100CT, MB20 Series Schottky Power Rectifier. how to test full wave rectifier. Schottky Barrier Diode in a TO-220 Plastic Package. Low power loss, high efficiency. it have 2 diodes with common cathode configuration, common cathode pin is center pin (pin number 2. outer pins (pin 1 & 2) are anode pins. MBR20100CT Pinout / pin configuration (PIN1:Anode. PIN 2:Cathode. PIN3:Anode) 30VMBR2020CT, 30VMBR2030CT, 30VMBR2035CT, 30VMBR2040CT, 30VMBR2045CT, 30VMBR2035CT, 30VMBR2060CT, MBR2080CTG / MBR2090CTG, MBR20100CTG are Switch-mode Power Rectifiers. This motorola SWITCHMODE. MBR20 series uses the Schottky Barrier principle with a platinum. Flammability Classification 94V-O. it uses flame retardant epoxy molding compound. metal silicon junction is majority carrier conduction. Low power loss, high efficiency.• High current capability• Guard Ring for overvoltage protection / Guard–Ring for Stress Protection For use in low voltage, high frequency inverters it have 20 Amps Total (10 Amps Per Diode Leg) Low Forward Voltage 150°C Operating Junction Temperature Guaranteed Reverse Avalanche High Surge Capacity Low Stored Charge Majority Carrier Conduction in this video I discussed how we can test power rectifier scottkey mbr20 series it is composition of 2 built-in SCHOTTKY DIODE, to obtain fast switch with low power dissipate. how to test SCHOTTKY DIODE using Multimeter function o SCHOTTKY DIODE and application note how to test mbr20100,mbr20100ct...
