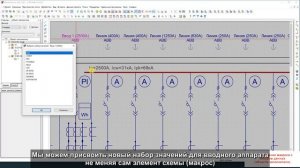

EPLAN Platform, Version 2.8: Using the macro navigator in schematic projects

The macro navigator now also supports the display of macros in schematic projects. This allows you to recognize which window and symbol macros were used in a schematic project. You can use the macro navigator in the schematic project to update several macros existing in a project with the data from the associated macro files by means of the new popup menu item Update macros. Display and Editing of Placeholder Objects in the Macro Navigator You can identify and edit the placeholder objects in the macros more easily through the display of the placeholder objects in the macro navigator. Improvements in the Property Dialog placeholder objects. The redesign of the Assignment tab makes creating and editing placeholder objects easier. The relevant and selected properties can be seen immediately without time-consuming searches. Some improvements have also been carried out at the Values tab. Specifying variables as "Modifiable" allows you to still change the values of a value set for these variables when selecting the value set. This allows you, for example, to adapt the structure identifiers of the associated objects while inserting macros with placeholder objects. #EPLANPlatform
