Urban XC Trail E-Bike (EN06) E-bike Display Panel - 16 Hidden Settings

Аватар автора
Солнечные коллекторы отопления

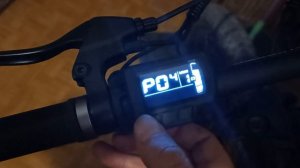

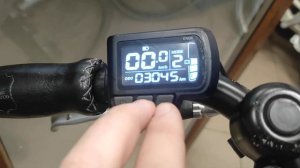

________________________________________________ ________________________________________________ To access these turn LED display on, then hold both "-" & "+" buttons at the same time. Setting 1 (P01): This adjusts the brightness of the display and there are 3 levels (1: darkest; 3: brightest) Setting 2 (P02): This switches between KPM and MPH if you need it. (0: KM; 1: MILE) Setting 3 (P03): This setting allows you to adjust the power voltage from 24V, 36V to 48V Setting 4 (P04): This setting allows you to adjust the auto-sleep timer and it goes up in minutes - 0 means no auto sleep. Setting 5 (P05): This is an interesting setting, it allows you to set the levels of peddle assist to 0-3, 0-5, 0-3, 1 - 3, 1-5 and 1-9 Setting 6 (P06): This allows you to adjust the power to suit your wheel&diameter. By making this bigger than the diameter of the wheel will make the bike go faster and enter it less than the diameter of the wheel will make the power of assist slower. Setting 7 (P07): Magnet Steel Number (for Speed Test) Range: 1-100 - This is normally 47 for direct drive (1200w and above) motors and 01 for geared (250w - 750W) motors. Setting 8 (P08): This is the setting most people will be interested with. This controls your max speed. Using "-" & "+" buttons to make the bike go slower or faster - remember UK law states it can only go 25 KPH (15.5 MPH), this setting is set in KPH, with a max of 35 KPH (22 MPH) Range: 0-50km/h, parameter 50 indicates no speed...
