tinySA Spectrum Analyzer review (Banggood)

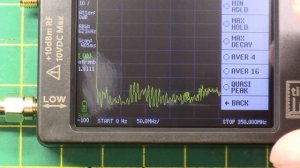

Coupon: BGdc1ff0 The tinySA is a small spectrum analyzer, primarily intended for 0.1MHz to 350MHz input but it has some nice other capabilities: - Spectrum Analyzer with two inputs, high quality MF/HF/VHF input for 0.1MHZ-350MHz, lesser quality UHF input for 240MHz-960MHz. - Switchable resolution bandpass filters for both ranges between 2.6kHz and 640kHz - Color display showing 290 scan points covering up to the full low or high frequency range. - Input Step attenuator from 0dB to 31dB for the MF/HF/VHF input. - When not used as Spectrum Analyzer it can be used as Signal Generator, MF/HF/VHF sinus output between 0.1MHZ-350MHz, UHF square wave output between 240MHz-960MHz. - A built-in calibration signal generator that is used for automatic self test and low input calibration. - Connected to a PC via USB it becomes a PC controlled Spectrum Analyzer - Rechargeable battery allowing a minimum of at least 2 hours portable use - Max input level +10dBm. Do not destroy your tinySA - Due to the low cost and very small form factor there are certain relevant limitations. #Banggood
