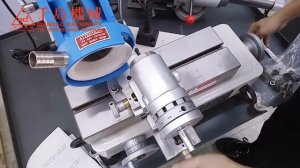

GD 66 Precision Mill Cutter Grinder

Аватар автора
Hardware Hocus-Pocus
The open structure of this machine provides more operating space and an enlarged grinding range. This sharpener can grind milling cutters, reamer rear enlarger and cutting edge, and can also grind ball end mill and tap guide cutting edges by switching to a different attachment. The main part of the sharpener is made of high quality aluminum which is light-weight, rot resistant, and offers many other benefits. It adopts the advanced international technique of air floating; the spindle rotates flexibly after being pressed to minimize friction. This machine is very easy to operate and grinds smooth and steady. Contact us! QQ: 2140855060 Specifications: 1. Applicable to 2, 3, 4, and 6 flute HSS end mills and carbide end mills 2. Grinding Capacity: 3~28mm (5C Collet) 3. Table Cross Travel (X axis): 115mm 4. Table Longitudianal Travel (Y axis): 60mm 5. Table in-feed graduation: 0.02mm 6. Adjustment for wheel head: +35° ~ -5° 7. Air Bearing Swivel: 360° 8. Diameter of Grinding Wheel: 125mm x 50mm x 32mm 9. Air consumption: Greater than or equal to 0.63MP 10. Motor: 220V / 0 25KW / 50Hz / 2800rpm 11. Packing size LxWxH (cm): 77 x 70 x 60 12. Gross Weight: 120 Kg
