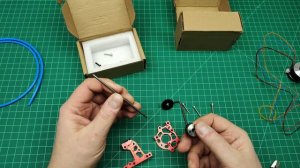

BIQU H2O Water cooled Extruder Installation and first try (Voron clone)

code ##################################################################### # Extruder ##################################################################### # E0 on MOTOR6 [extruder] step_pin: PE2 dir_pin: !PE3 enable_pin: !PD4 Update value below when you perform extruder calibration If you ask for 100mm of filament, but in reality it is 98mm: rotation_distance = previous_rotation_distance * actual_extrude_distance / 100 22.6789511 is a good starting point rotation_distance: 23.5008 5mm Drive Gears Update Gear Ratio depending on your Extruder Type Use 50:17 for Afterburner/Clockwork (BMG Gear Ratio) Use 80:20 for M4, M3.1 Gear Ratio gear_ratio: 7:1 microsteps: 16 full_steps_per_rotation: 200 for 1.8 degree, 400 for 0.9 degree nozzle_diameter: 0.4 filament_diameter: 1.75 heater_pin: PA2 Validate the following thermistor type to make sure it is correct sensor_type: NTC 100K MGB18-104F39050L32 sensor_pin: PF4 min_temp: -20 max_temp: 500 max_power: 1.0 min_extrude_temp: 170 = pid =...
