73 de R3T-100 Magnetic loop anten at 7 MHz _ Антенна magnetic loop для диапазона 7МГц 08.10.2025

Аватар автора
R3T-100 ex UA3123SWL

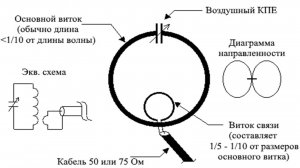

This is how a magnetic loop made from RG58 cable works. The loop itself, 1.7m in diameter and 5.5m in circumference, is tuned by a 2 x 495pf capacitor with alternate thinned plates at 7 MHz. The bandwidth is approximately 50 kHz. The communication loop is made from the same RG58 cable, 0.345 m in diameter and 1.1 m in circumference. In this configuration, the total antenna tuning range was from 5.6 MHz to 9.5 MHz. The ARRL calculator from the 66pacific website was used for the calculations. ☝☝☝The link only works via VPN. Вот так работает magnetic loop из кабеля RG58 Cама рамка 1.7m диаметром / периметр 5.5m настраивается конденсатором 2*495pf с прореженными через одну пластинами на 7MHz Ширина полосы около 50KHz Петля связи выполнена из того же кабеля RG58 диаметром 0.345 м / периметр 1.1m В таком варианте общий диапазон перестройки антенны составил от 5.6MHz до 9.5MHz Для расчета использовался ARRL калькулятор с сайта 66pacific ☝☝☝ссылка работает т о л ь к о через VPN
